BCG Building Generator — Facade Strip-Atlas Layout

This document describes the UV layout of the BCG facade strip-atlas so that advanced users can author their own albedo and emission atlases in any image editor.

Overview

The atlas is a 1024 × 2048 px vertical strip. One full tile spans all 1024 columns horizontally and 256 rows vertically (the window-band height for most bands). U advances 1/8 per window cell horizontally (cellsPerTile = 8): a building 8 cells wide uses exactly one full tile repetition, a 4-cell building uses half a tile, etc. V selects which band a floor samples by staying inside that band's row range for the entire floor quad.

The atlas is split into nine horizontal bands, stacked from bottom (V = 0) to top (V = 1). Both the albedo and emission atlases share the identical band layout, so a custom emission map can be authored directly on top of a custom albedo.

The four shipped palettes — and the BCG_Facade_Albedo_{A..D}.png / BCG_Facade_Emission_{A..D}.png file names — use this same layout.

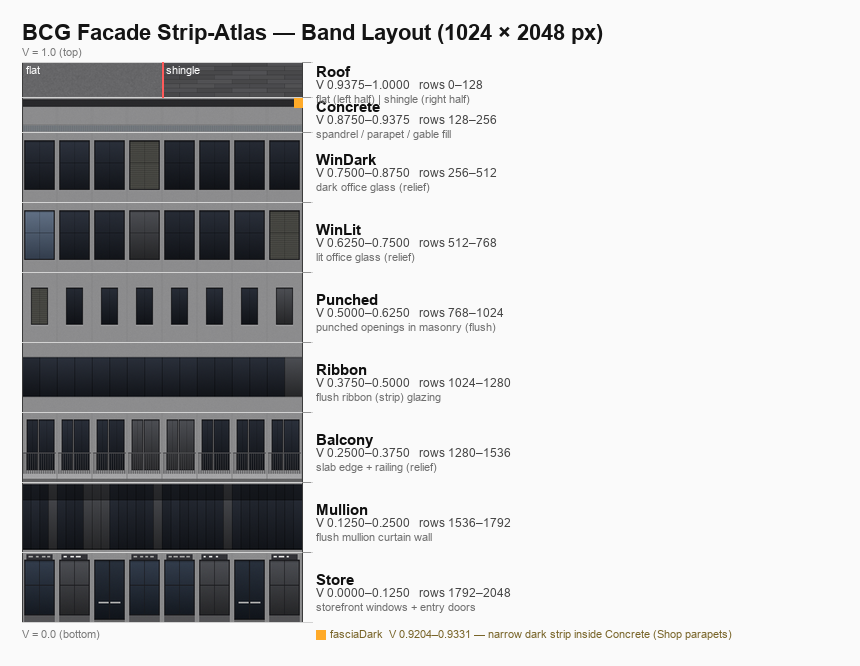

Band layout overlaid on the Albedo_A atlas — the nine V-bands with their V ranges and pixel rows, the roof band's flat/shingle split at column 512, and the fasciaDark sub-band.

Band table

V coordinates are normalized (0 = bottom of image, 1 = top of image), matching Unity UV space. Pixel rows count from the top of the image downward (row 0 = top).

Band	Variable	V range (normalized)	Pixel rows (top-origin)	Height	Purpose
Store	`bandStore`	0.0000 – 0.1250	1792 – 2048	256 px	Ground-floor storefront: display windows, entry doors. The door cell is at U [2/8, 3/8] within the tile.
Mullion	`bandMullion`	0.1250 – 0.2500	1536 – 1792	256 px	Flush mullion curtain wall: vertical metal framing, glass infill.
Balcony	`bandBalcony`	0.2500 – 0.3750	1280 – 1536	256 px	Balcony band: slab edge + railing detail. Used with geometric relief (0.12 m inset).
Ribbon	`bandRibbon`	0.3750 – 0.5000	1024 – 1280	256 px	Flush ribbon (strip) glazing: horizontal bands of glass with spandrel.
Punched	`bandPunched`	0.5000 – 0.6250	768 – 1024	256 px	Punched openings in a masonry/plaster field. Flush (no relief).
WinLit	`bandWinLit`	0.6250 – 0.7500	512 – 768	256 px	Lit office glass: bright interior illumination behind dark frames. Used with geometric relief.
WinDark	`bandWinDark`	0.7500 – 0.8750	256 – 512	256 px	Dark office glass: tinted/reflective curtain wall. Used with geometric relief.
Concrete	`bandConcrete`	0.8750 – 0.9375	128 – 256	128 px	Spandrel / concrete parapet fill. Sub-sampled by the engine for parapet, corner strips, reveals, gable triangles, and House chimney sides.
Roof	`bandRoof`	0.9375 – 1.0000	0 – 128	128 px	Roof surfaces. Split horizontally — see §Roof band below.

Padding

Each band is inset by 6 px on each vertical edge before the UV coordinates are handed to mesh quads. This is computed as:

padV = 6 / 2048  ≈ 0.00293 (UV units)

The constant in source is const float padV = 6f / 2048f (BCG_BuildingMeshBuilder.cs, line 172). The engine calls Pad(band) which shrinks the V range inward by padV on both sides: Pad(band) = (band.x + padV, band.y - padV).

This 6 px guard prevents mip-map bleed across band boundaries at standard atlas sizes.

Roof band — horizontal split

The roof band (V 0.9375 – 1.0000, rows 0 – 128) is split horizontally into two independently tileable halves at column 512:

Half	U range	Constants	Content
Left — flat roof	U 0.0 – 0.5	`roofFlatU`	Flat-roof gravel / membrane. Padded: `(0 + padU, 0.5 − padU)`.
Right — shingles	U 0.5 – 1.0	`roofShingleU`	Pitched shingle tiles. Padded: `(0.5 + padU, 1.0 − padU)`.

The horizontal padding is 6 px at 1024 px width:

padU = 6 / 1024  ≈ 0.00586 (UV units)

Source constant: const float padU = 6f / 1024f (BCG_BuildingMeshBuilder.cs, line 191). This guards against mip bleed across the half seam at U = 0.5.

Non-House buildings (flat roof): parapet cap and roof slab sample roofFlatU.
House buildings (pitched roof): the two shingle planes tile into roofShingleU, with U chunked in cellWidth × 4 m segments and V stripped in cellWidth m bands across the slope.

Dark fascia sub-band

Shop parapets sample a narrow strip inside the Concrete band rather than the full parapet concrete sub-range:

Sub-band	V range	Approximate pixel rows (top-origin)
`fasciaDark`	0.9204 – 0.9331	rows 136 – 164

This is stored as a pre-padded constant; no additional Pad() is applied at usage.

Tiling and U layout

U advances at one window cell per 1/cellsPerTile tile fraction. With cellsPerTile = 8:

U_per_cell = 1/8 = 0.125

For a building with cellsX = 7 cells and a random integer U offset uOffset (0–7), the side maps U = uOffset/8 to (uOffset + 7)/8. The offset shifts lit windows and door positions per facade for variety, while keeping cell seam alignment.

A per-floor shift of (floor * 3) & 7 cells breaks the vertical stacking of the same texel column without extra rng draws, so lit-window columns appear staggered.

Concrete sub-sampling

The Concrete band (128 px) is the shared reservoir for all non-window surfaces. The engine selects sub-ranges by linear fraction within the padded concrete band:

Usage	`ConcreteSub(f0, f1)` fractions	Surface
Parapet outer (non-Shop)	0.25 – 0.70	Outer parapet wall ring
Parapet inner	0.30 – 0.62	Inner parapet wall ring
Parapet cap	0.45 – 0.52	Flat cap strip
Gables, chimney sides, corner strips, reveals	0.25 – 0.70	Wall fill
Chimney cap	0.45 – 0.52	Flat box top
Eave soffit	0.30 – 0.40	Underside of eave overhang

Four shipped palettes

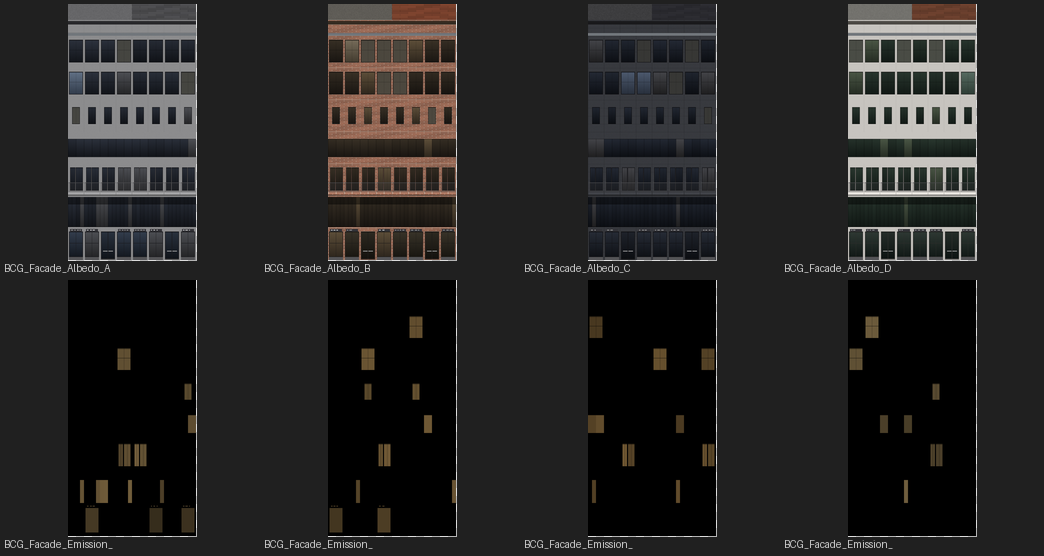

The four shipped atlases — top row: albedo palettes A–D (Light Gray / Brick / Graphite Curtain / White Plaster); bottom row: the matching emission maps A–D (dark, with lit window cells).

Variant	Letter	Albedo file	Emission file	Visual character
0	A	`BCG_Facade_Albedo_A.png`	`BCG_Facade_Emission_A.png`	Light gray (generic concrete / glass tower)
1	B	`BCG_Facade_Albedo_B.png`	`BCG_Facade_Emission_B.png`	Brick (warm red-brown masonry)
2	C	`BCG_Facade_Albedo_C.png`	`BCG_Facade_Emission_C.png`	Graphite curtain wall (dark glass)
3	D	`BCG_Facade_Albedo_D.png`	`BCG_Facade_Emission_D.png`	White plaster (bright render / stucco)

All four atlases share the exact band layout described in this document and are interchangeable on any generated mesh without UV changes.

Normal-map atlases (v1.2.0)

BCG_Facade_Normal_{A..D}.png are tangent-space normal maps sharing the identical band layout as their albedo/emission counterparts — same 1024 × 2048 strip, same nine bands, same padding. They were generated offline from the albedo/emission features (height-from-features → tangent-space normal) by the same Tools~/gen_facade_textures.py generator, adding relief cues for window frames, spandrels, and roof gravel/shingles.

Always-on when present, no toggle. CreateFacadeMaterial binds them on every pipeline with the correct slot/keyword: Built-in Standard → _BumpMap + _NORMALMAP; URP Lit → _BumpMap + its normal-map keyword; HDRP Lit → _NormalMap via the existing reflection-safe path. Fix Materials is the one repair entry point that (re)binds them; the footer material-health badge flags a missing bind.
Requires mesh tangents. FinalizeMesh calls Mesh.RecalculateTangents() so normal mapping has a valid tangent basis — vertex positions/counts are unaffected, so this does not touch any freeze test.
Day/Night facade variants inherit the normal bind automatically (it's independent of the emission dial).
To author a custom normal atlas: paint it at the same 1024 × 2048 resolution and band layout as the albedo atlas (see the band table above), name it BCG_Facade_Normal_{A..D}.png, drop it into Assets/BCG/BuildingGen/Textures/, and run Fix Materials.

SpecGloss atlases (v1.2.0)

BCG_Facade_Specular_{A,B,C,D}.png — 1024×2048 SpecGloss atlases (RGB = specular color, A = per-texel smoothness), same band layout as the albedo. Bound as _SpecGlossMap on the fake-interiors facade shader by Fix Materials; when absent, re-run Fix Materials so the materials fall back to the scalar wall/glass smoothness.

Shared window mask (v1.2.0)

BCG_Facade_WindowMask.png is a single shared 1024 × 2048 linear (non-color) mask used by the Fake Interiors shader to tell glass texels from wall texels:

White = glass, black = wall. It uses the same band layout and padding as the albedo atlas, so it aligns pixel-for-pixel with every variant's window openings.
Shared across all four palette variants — because A–D all share the same band layout, one mask file covers every variant rather than needing four (verified at implementation time; the engine would fall back to per-variant masks if a future palette's layout ever diverged).
The mask also carries trim detail: railing silhouettes (Balcony band), door outlines (Store band), and mullion bar lines (Mullion band) are painted into the mask alongside the plain glass rectangles, so the interior shader's masked-fragment test naturally excludes railings/frames/ mullions from the "look into the room" treatment — those stay opaque facade.
Read as linear (not sRGB) since it's a boolean-ish mask, not colour data.
Authored by the same Tools~ generator as the albedo/normal atlases.

Interior room atlas (v1.2.0)

BCG_InteriorAtlas.png is a 2048 × 1024 grid of 4 × 2 pre-projected 512² room captures used by the Fake Interiors shader as the "room behind the glass":

Baked by BCG_InteriorRoomBaker.BakeAtlas() (Editor utility, no MenuItem — an internal dev tool, not a shipped workflow). It renders 8 deterministic parametric box-rooms from the window plane (camera at the plane, FOV 90°, aspect 1:1) into 512² tiles and composites them into the atlas grid. Purely algorithmic — no external or AI-generated imagery — only the baked PNG ships as a dependency.
farFrac = 0.5 contract — each room is baked with its back wall filling exactly the central half of the tile (room depth = room width, the classic single-texture parallax-room setup). The interior mapping shader (BCG_InteriorMapping.hlsl) hard-codes this same farFrac, so the atlas and the shader's ray-box intersection must agree on it — re-bake and shader must change together if that ratio is ever tuned. Concretely: farFrac is the fraction of the tile's linear size the back wall spans as the camera's 90° FOV frames a room whose depth equals its width — moving to a different depth/width ratio (or FOV) changes farFrac and requires updating the constant in the shader to match.
One texture sampler instead of N cubemaps — cheaper on mobile than a per-room cubemap array, trivial to atlas into one file, and produces the same "look into a room" visual class as classic interior-mapping cubemap techniques.
Per-cell room selection — the shader hashes the window's UV cell index to pick a grid tile (room variant), tint, and day/night lit state; this is a pure function of the cell index, not a runtime random draw, so the same building always shows the same rooms.
Re-baking: re-run BCG_InteriorRoomBaker.BakeAtlas() (via execute_code or a temporary MenuItem) to change the room look. It overwrites BCG_InteriorAtlas.png in place — no further wiring needed since the shader already references that path by name.

Road atlas — BCG_Road_Atlas.png

The Roads feature uses its own 1024 × 2048 px vertical strip atlas, laid out with the same top-origin-row convention as the facade atlas but split into eight equal 256 px bands — no per-band sub-splits or sub-sampling reservoir. Both the albedo atlas and its emission twin (BCG_Road_Emission.png) share the identical band layout, so a custom road emission map can be authored directly on top of a custom road albedo, exactly like the facade atlas's albedo/emission pair.

Band	Variable	V range (normalized)	Pixel rows (top-origin)	Height	Purpose
EdgeLine	`bandEdgeLine`	0.0000 – 0.1250	1792 – 2048	256 px	Solid lane-edge line, painted just inside each asphalt edge on the shadows-off markings renderer.
DashLine	`bandDash`	0.1250 – 0.2500	1536 – 1792	256 px	Center dash strip. One atlas tile paints exactly one dash period (`kDashPeriodMeters`); the edge's U is fitted (`FitDashU`) so both trimmed ends land on a whole dash.
Crosswalk	`bandCrosswalk`	0.2500 – 0.3750	1280 – 1536	256 px	Zebra crosswalk striping, emitted spanning the carriageway at every junction socket.
Sidewalk	`bandSidewalk`	0.3750 – 0.5000	1024 – 1280	256 px	Pedestrian sidewalk surface — the outer band of the ribbon, outside the curb.
CurbTop	`bandCurbTop`	0.5000 – 0.6250	768 – 1024	256 px	Flat curb top, between the curb face and the sidewalk.
CurbFace	`bandCurbFace`	0.6250 – 0.7500	512 – 768	256 px	Beveled curb face (a 0.2 m drivable ramp, `kCurbBevelRun`), junction curb-end faces, and the outer skirt walls (reused for both).
Gutter	`bandGutter`	0.7500 – 0.8750	256 – 512	256 px	Gutter strip just inside each carriageway edge — a fixed 0.3 m band per side (`kGutterWidth`).
Asphalt	`bandAsphalt`	0.8750 – 1.0000	0 – 256	256 px	Carriageway surface and the planar-mapped junction pad fill.

All eight BCG_RoadMeshCore band constants are Vector2 V ranges, exactly like the facade atlas's bandStore/bandRoof/etc. — every quad emitted by SweepEdge, EmitJunction, EmitEndCap, EmitEdgeMarkings, and EmitCrosswalk samples one of the eight bands verbatim.

Padding: every band is shrunk by the same 6 px per edge mip-bleed guard as the facade atlas (const float padV = 6f / 2048f in BCG_RoadMeshCore.cs, applied via the identically-named Pad(band) helper) — same convention, same constant, different source file.

Tiling: one atlas U tile spans 8 m of road (kMetersPerTile); the dash band paints one dash period per tile (kDashPeriodMeters = 8). Unlike the facade atlas there is no per-variant palette — one road atlas covers every generated road, and its bands are horizontally seamless (they tile cleanly at U = 0/1) rather than mapped to discrete window cells.

Authored by Tools~/gen_road_textures.py — the same deterministic-generation approach as gen_facade_textures.py, with a single fixed seed and a fixed paint order per band.

Authoring a custom atlas

Create a new 1024 × 2048 px image.
Paint each band within its V row range (see band table above), leaving 6 px clear at the top and bottom edge of each band as mip-bleed guard.
In the Roof band (rows 0 – 128): - Fill columns 0 – 511 with a flat-roof surface (gravel, membrane, etc.). - Fill columns 512 – 1023 with a shingle tile that repeats cleanly. - Leave 6 px clear on each side of the column-512 seam.
Name the file to match one of the four expected paths (BCG_Facade_Albedo_{A..D}.png) and drop it into Assets/BCG/BuildingGen/Textures/.
Run Fix Materials (Active Pipeline) from the Building Generator window to rebind the materials to the new textures.
Optionally author a matching emission atlas at the same resolution and band layout and place it as BCG_Facade_Emission_{A..D}.png.
