Tune and ship

Settings Reference

Every field in CCDS_Settings, with its type, range and the value actually shipped.

Asset: Assets/CCDS/Resources/CCDS_Settings.asset Open with: Tools → BoneCracker Games → CCDS → Edit Settings Loaded at runtime by: Resources.Load("CCDS_Settings") via CCDS_Settings.Instance

Two columns appear throughout: Shipped is the value in the asset you received; Code default is the value in CCDS_Settings.cs, which applies only to a newly created asset. Where they differ, the shipped value is what your project does.

Finding a setting

The inspector is split into eight tabs. This page groups fields the same way, so a heading here maps to a tab there.

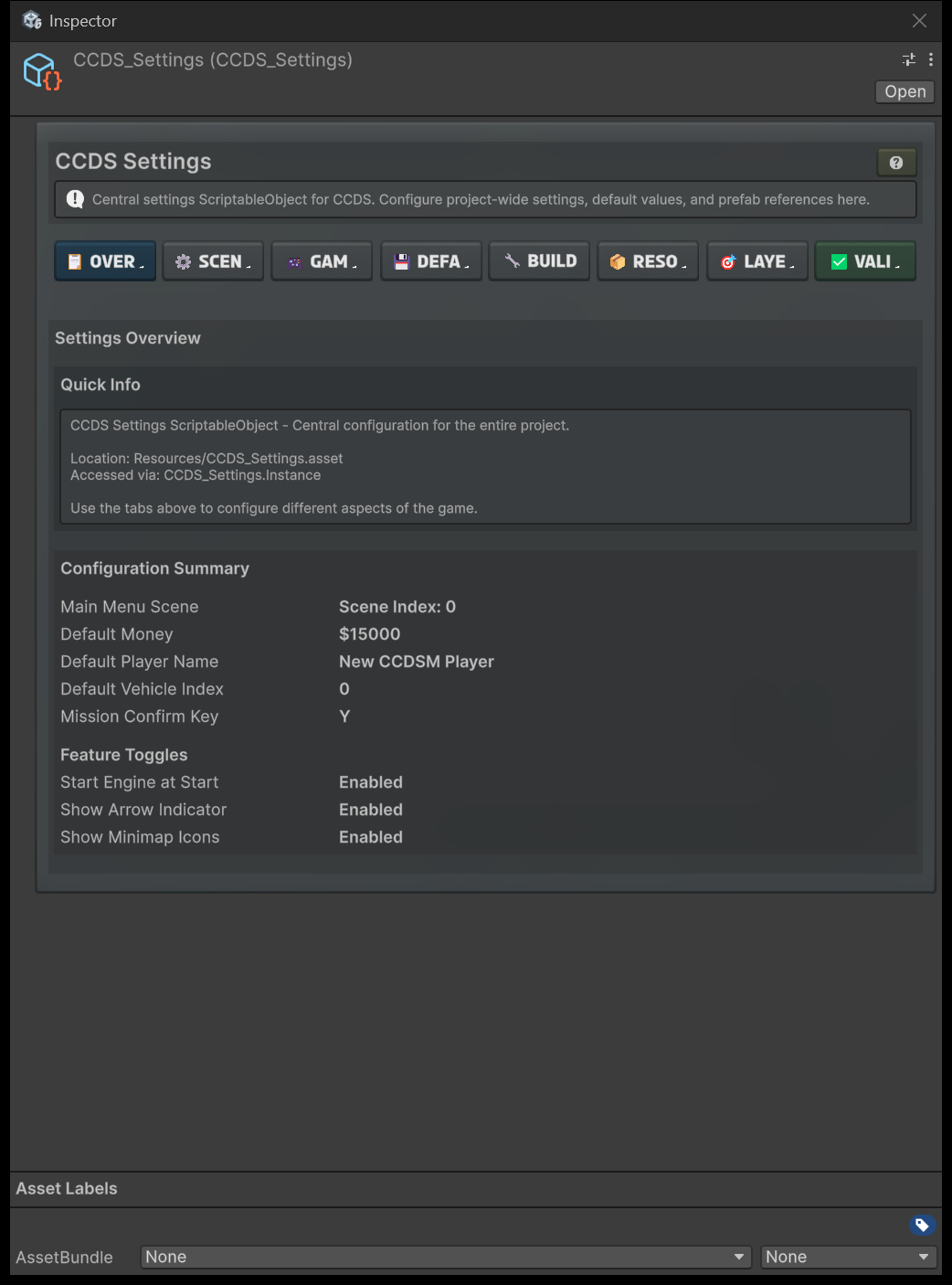

CCDS Settings inspector on the Overview tab, showing the eight tabs and a configuration summary with no active development-setting warnings

Tab	Holds
Overview	Read-only summary and active-warning banners
Scene & Defaults	Scene indices, money, name, volumes
Gameplay	Feature toggles, mission confirm key, network rates
Default Save Data	Graphics and gameplay values seeded into a new save
Build	Colour space, lightmaps, developer settings
Resources	Prefab and asset references
Layers	Layer management and names
Validation	Configuration problems

The Overview tab is worth checking first on any project: it summarises the key values and raises a banner for every development setting that is still switched on.

Development settings

Three fields exist for development and are shipped off. The inspector groups them under Developer Settings on the Build tab, behind a "DISABLE before release!" warning, and raises a Developer Settings Active banner on the Overview tab whenever any is on.

Field	Shipped	Turn on when	Cost if left on in a release build
`useProcessIdForSaveFile`	`false`	Running two clients on one PC to test multiplayer	Each launch can resolve a different save file, so players appear to lose progress
`enableDebugMessages`	`false`	Diagnosing a problem and you need `CCDS.DebugLog` output	Console spam and avoidable string work every frame
`enableDebugPanel`	`false`	You want the `F12` panel in a build	Players can open the developer panel with `F12`

Turn them on freely while building your game — just check the Overview banner is clear before you ship. That banner is the fastest release check CCDS gives you.

Scene and defaults

Inspector tab: Scene & Defaults.

Field	Type	Range	Shipped	Code default	Purpose
`mainMenuSceneIndex`	`int`	≥ 0	`0`	`0`	Build index of the main menu scene
`defaultMoney`	`int`	≥ 0	`15000`	`10000`	Starting money for a new player
`defaultPlayerName`	`string`	—	`New CCDSM Player`	`New Player`	Name given to a new player
`defaultSelectedVehicleIndex`	`int`	≥ 0	`0`	`0`	Vehicle selected for a new player
`defaultAudioVolume`	`float`	0–1	`0.6`	`1.0`	Starting SFX volume
`defaultMusicVolume`	`float`	0–1	`0.5`	`0.65`	Starting music volume
`defaultSelectedSceneIndex`	`int`	≥ 0	`1`	`1`	Gameplay scene a new player starts in

defaultPlayerName is only a seed. CCDS.SetPlayerName() enforces a three character minimum.

Graphics defaults

Inspector tab: Default Save Data.

These seed a new save. Changing them does not affect an existing player — that requires CCDS.ResetGame() or Delete Save Data.

Field	Type	Range	Shipped	Code default	Purpose
`defaultImageEffects`	`bool`	—	`false`	`false`	Post-processing on
`defaultShadows`	`bool`	—	`false`	`false`	Shadows on
`defaultDrawDistance`	`float`	500–5000	`700`	`1000`	Camera far plane, metres
`defaultShadowResolution`	`int`	0–3	`0`	`2`	0 = Low, 1 = Medium, 2 = High, 3 = Very High
`defaultMaxRealtimeLights`	`int`	0–16	`0`	`4`	Realtime lights per frame
`defaultAntialiasingMode`	`int`	0–2	`0`	`0`	0 = None, 1 = FXAA, 2 = SMAA
`defaultSoftShadows`	`bool`	—	`false`	`true`	Soft shadow edges

The shipped set is deliberately conservative — no shadows, no realtime lights, 700 m draw distance — so the demo runs on low-end hardware. Raise it for a desktop-only title.

Gameplay defaults

Inspector tab: Default Save Data.

Field	Type	Range	Shipped	Code default	Purpose
`defaultAutoHandbrakeEnabled`	`bool`	—	`true`	`false`	Arcade auto-handbrake while drifting
`defaultTrafficDensity`	`float`	0–2	`1.0`	`1.0`	Traffic multiplier, `1.0` = 100%
`defaultMultiplayerLevel`	`int`	≥ 1	`1`	`1`	Starting multiplayer level

Layer management

Inspector tab: Layers.

Field	Type	Shipped	Purpose
`enableAutoLayerManagement`	`bool`	`true`	Create and assign CCDS layers automatically
`layerCCDSMap`	`string`	`CCDS_Map`	Drivable map geometry — raycasting and minimap
`layerCCDSMinimapItem`	`string`	`CCDS_MinimapItem`	Minimap icons, no physics
`layerCCDSTrailblazerObstacle`	`string`	`CCDS_TrailblazerObstacle`	Trailblazer obstacles
`layerCCDSCheckpoint`	`string`	`CCDS_Checkpoint`	Checkpoint triggers
`layerCCDSMarker`	`string`	`CCDS_Marker`	Mission markers
`layerCCDSProp`	`string`	`CCDS_Prop`	Props and collectibles

Rename a layer here only if it clashes with one of your own. With auto management on, CCDS creates any that are missing.

Gameplay behaviour

Inspector tab: Gameplay.

Field	Type	Shipped	Code default	Purpose
`startEngineAtStart`	`bool`	`true`	`true`	Engine running when gameplay begins
`showArrowIndicator`	`bool`	`true`	`true`	Arrow above the player pointing at the objective
`showMinimapIcons`	`bool`	`true`	`true`	Player and opponent icons on the minimap

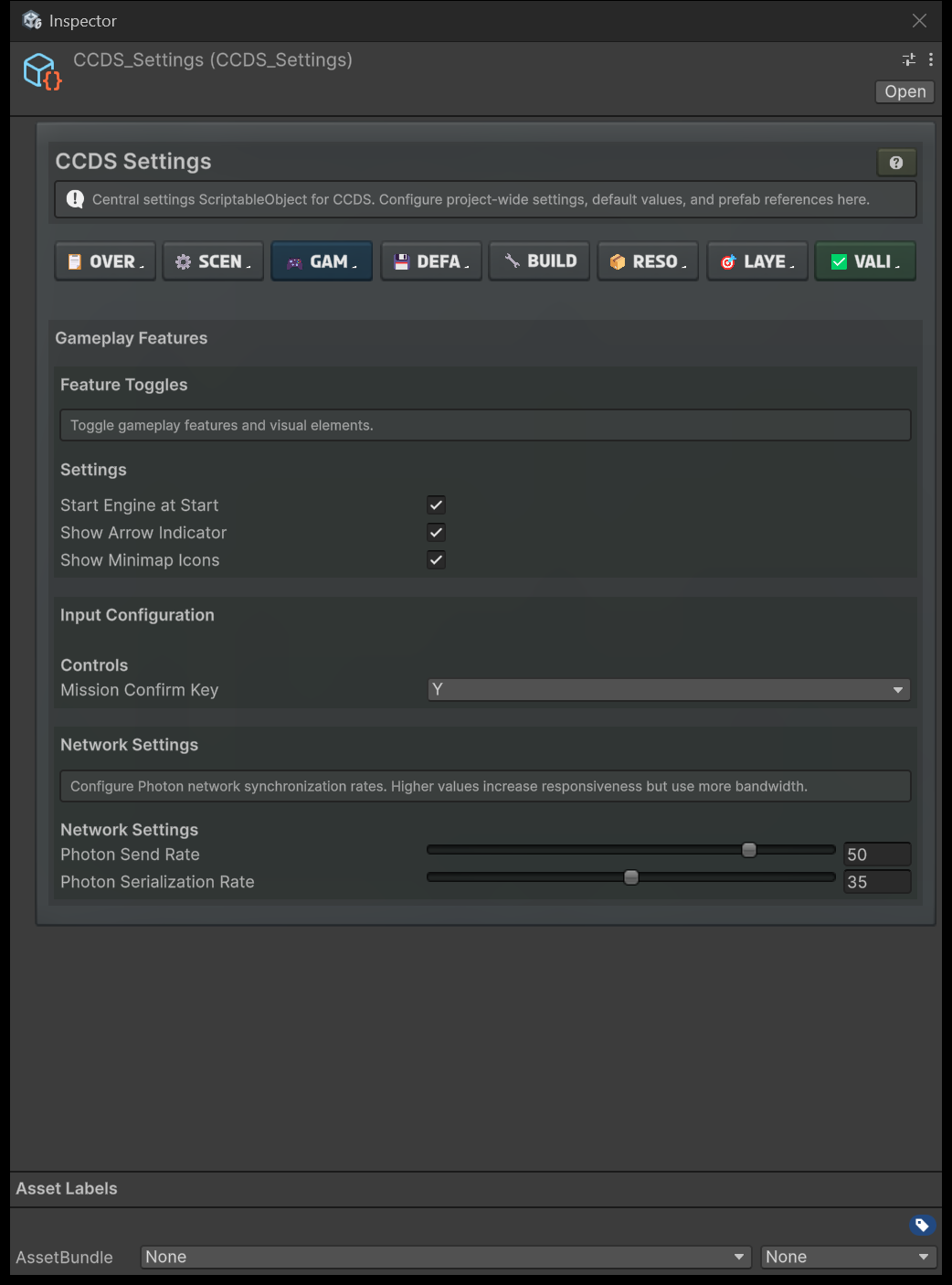

CCDS Settings inspector on the Gameplay tab, showing the three feature toggles, the mission confirm key, and the Photon send and serialization rate sliders

The Gameplay tab also carries the mission confirm key and the two Photon rates, documented under Controls and Network below.

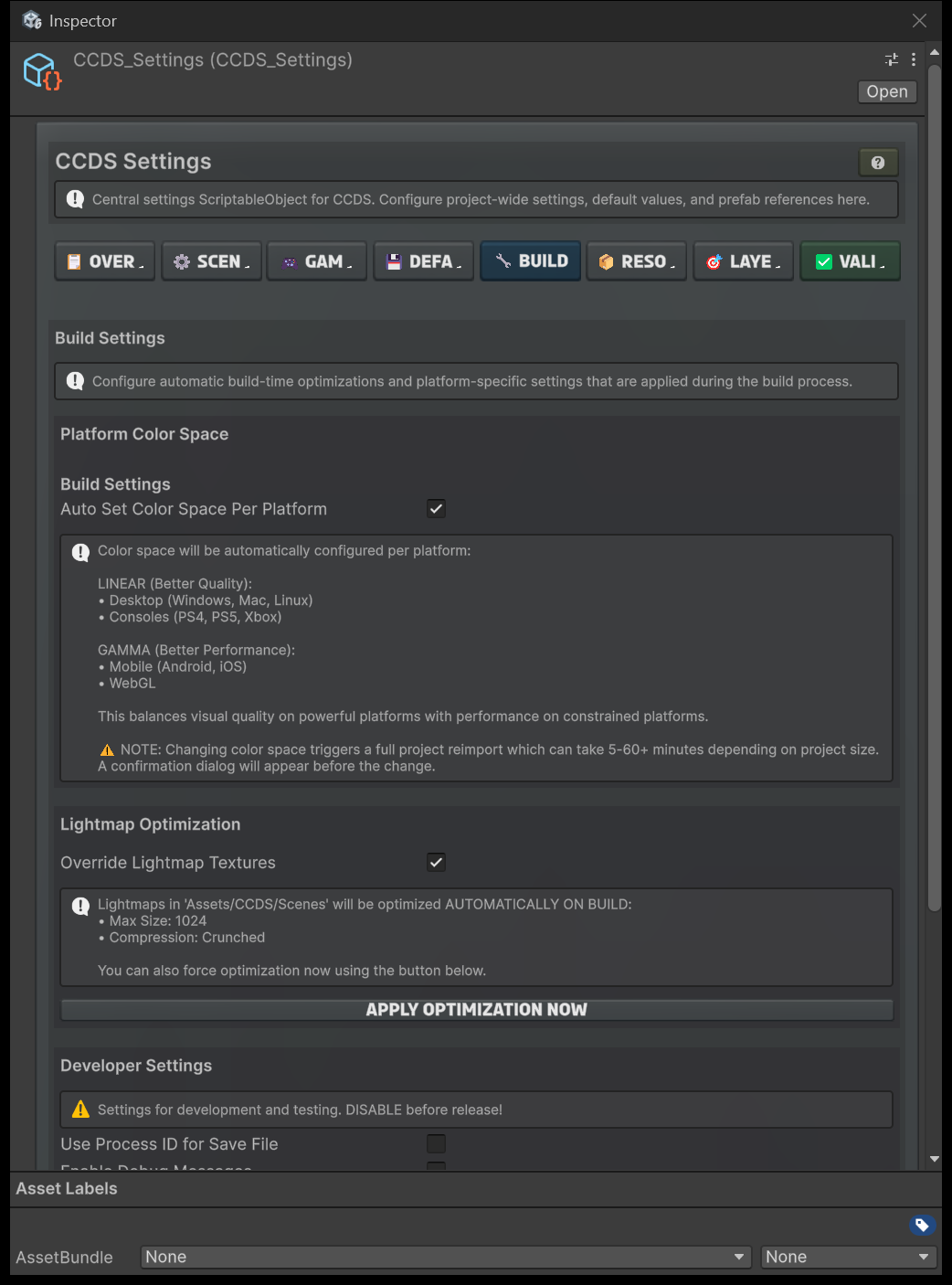

Build settings

Inspector tab: Build.

Field	Type	Shipped	Code default	Purpose
`autoSetColorSpacePerPlatform`	`bool`	`true`	`false`	Linear for desktop and console, Gamma for mobile and WebGL
`overrideLightmapTextures`	`bool`	`true`	`false`	Cap lightmaps at 1024 with crunch compression

overrideLightmapTextures is applied by CCDS_BuildProcessor, and only when enabled.

Developer settings

Also on the Build tab, under a Developer Settings header the inspector itself marks "DISABLE before release!". All three ship off — see Development settings.

Field	Type	Shipped	Code default	Purpose
`useProcessIdForSaveFile`	`bool`	`false`	`false`	Per-process save files for multi-instance testing
`enableDebugMessages`	`bool`	`false`	`false`	`CCDS.DebugLog` output
`enableDebugPanel`	`bool`	`false`	`false`	`F12` debug panel in builds

enableDebugMessages gates informational logs only. CCDS.DebugLogWarning and CCDS.DebugLogError always emit.

The Build tab also has an Apply Optimization Now button, which runs the lightmap pass immediately instead of waiting for the next build.

Editor visualization

Field	Type	Purpose
`hierarchyHighlightBackgroundTexture`	`Texture2D`	Background for hierarchy highlighting. Empty gives solid colours.

Controls

Inspector tab: Gameplay.

Field	Type	Shipped	Code default	Purpose
`missionConfirmKey`	`KeyCode`	`Y`	`Y`	Confirm and start a mission inside a marker

Read live by CCDS_MissionMarkerInputHandler, and the marker's prompt text follows it — no UI edit needed when you change it.

Network

Inspector tab: Gameplay.

Field	Type	Range	Shipped	Code default	Tooltip recommends
`photonSendRate`	`int`	10–60	`50`	`30`	20–30
`photonSerializationRate`	`int`	10–60	`35`	`20`	15–20

The shipped pair is well above the recommendation. It buys smoother remote vehicles at a real bandwidth cost — relevant on Photon's free tier, where message volume is capped. Lower both if you hit limits; keep serialization below send rate either way.

Resource references

Inspector tab: Resources.

Prefabs and assets CCDS instantiates at runtime. All are assigned in the shipped asset. A missing reference produces a null error at the moment the feature is first used, not at startup.

Field	Type	Used for
`vehicleCamera`	`RCCP_Camera`	Gameplay vehicle camera
`arrowForPlayer`	`CCDS_ArrowIndicator`	Objective arrow above the player
`minimapCamera`	`CCDS_Minimap_Camera`	Minimap camera
`minimapIconForPlayerVehicle`	`CCDS_MinimapItem`	Player icon
`minimapIconForOpponentVehicle`	`CCDS_MinimapItem`	Opponent icon
`minimapIconForPoliceVehicle`	`CCDS_MinimapItem`	Police icon
`healthBar`	`CCDS_HealthBar`	Health bar over opponents
`engineSmoke`	`CCDS_EngineSmoke`	Damage smoke
`mainmenuUIManager`	`CCDS_UI_MainMenuManager`	Main menu UI
`gameplayUIManager`	`CCDS_UI_Manager`	Gameplay HUD
`nametagPrefab`	`GameObject`	Multiplayer nametag — needs `TextMeshProUGUI` + `CanvasGroup`
`tutorialPopupPrefab`	`CCDS_TutorialPopup`	Tutorial popups
`mobileInteractionButtonPrefab`	`GameObject`	Mobile "Enter Mission" button
`missionMarker`	`CCDS_Marker_MultiplayerMission`	Mission markers
`policeSiren`	`RCCP_PoliceLights`	Police lights
`policeSirenAudio`	`AudioClip`	Siren sound
`copVehicle`	`ACCDS_Vehicle`	Police vehicle
`pursuitVehicle`	`ACCDS_Vehicle`	Pursuit target
`racerVehicle`	`ACCDS_Vehicle`	Race opponent
`raceFinisher`	`CCDS_MissionObjective_Race_Finisher_MP`	Race finish line
`defaultMission`	`ACCDS_Mission`	Mission active at the start of gameplay

Deprecated references

Present for compatibility, single-player only. Do not build new content on them.

Field	Use instead
`marker`	`missionMarker`
`trailBlazerObstacle`	`CCDS_MissionObjective_TrailblazerItem_MP`
`checkpoint`	`CCDS_MissionObjective_CheckpointItem_MP`

Changing settings at runtime

Graphics and audio settings are player-facing and persisted. Go through the CCDS API rather than writing the asset:

C#

CCDS.SetShadows(true);
CCDS.SetDrawDistance(2000f);
CCDS.SetAntialiasingMode(2);     // SMAA
CCDS.SetAudioVolume(0.8f);
CCDS.SetTrafficDensity(0.5f);

Each setter writes to the save data and raises the matching event. Writing CCDS_Settings fields at runtime changes the defaults for the next new save, not the current player.

Full list: Scripting API.
