Create a Mission

01The four mission types

All four are multiplayer-capable and derive from ACCDS_MultiplayerMissionBase. There is no separate single-player mission type — a mission with one participant is single-player.

A fifth component, CCDS_MissionObjective_FreeRoam_MP, exists as an open-world placeholder. It is not exposed by CCDS.CreateMission.

02The three pieces

A working mission is always three things:

Missing any one of them produces a mission that exists but can never be played.

03Create the mission

From a script, or from an editor script / the Console:

using BoneCrackerGames.CCDS;

// Creates the GameObject, adds the right component, parents it to the
// mission manager, and registers it. Returns null if the manager is absent.
GameObject mission = CCDS.CreateMission("Downtown Sprint", CCDS.MissionType.Race);

CreateMission requires CCDS_MissionObjectiveManager to be in the scene. Without it you get "CreateMission: CCDS_MissionObjectiveManager not found in scene!" and a null return — see Set Up a New City Scene for creating the managers.

By hand: create an empty GameObject under CCDS_MissionObjectiveManager, add the mission component from Add Component → BoneCracker Games → CCDS → Missions → Multiplayer →, and register it with the manager.

04Place the objective positions

Positions are where the mission's checkpoints, race waypoints or obstacles go.

// At a specific place in the world
CCDS.CreateMissionPosition(new Vector3(120f, 0f, -45f), Quaternion.identity, "Checkpoint_01");

// Or at the origin, to drag into place
CCDS.CreateMissionPosition("Checkpoint_01");

Both overloads route through CCDS_MissionObjectivePositionsManager, which owns the object and parents it. Creating a bare GameObject with the component on it will not register it.

Rotation matters for anything directional — checkpoint gates and race waypoints use forward to decide which way the player should be travelling.

05Add the start marker

Drag a marker prefab from Assets/CCDS/Prefabs/Markers/ into the world where the mission should begin:

Then set the marker's fields:

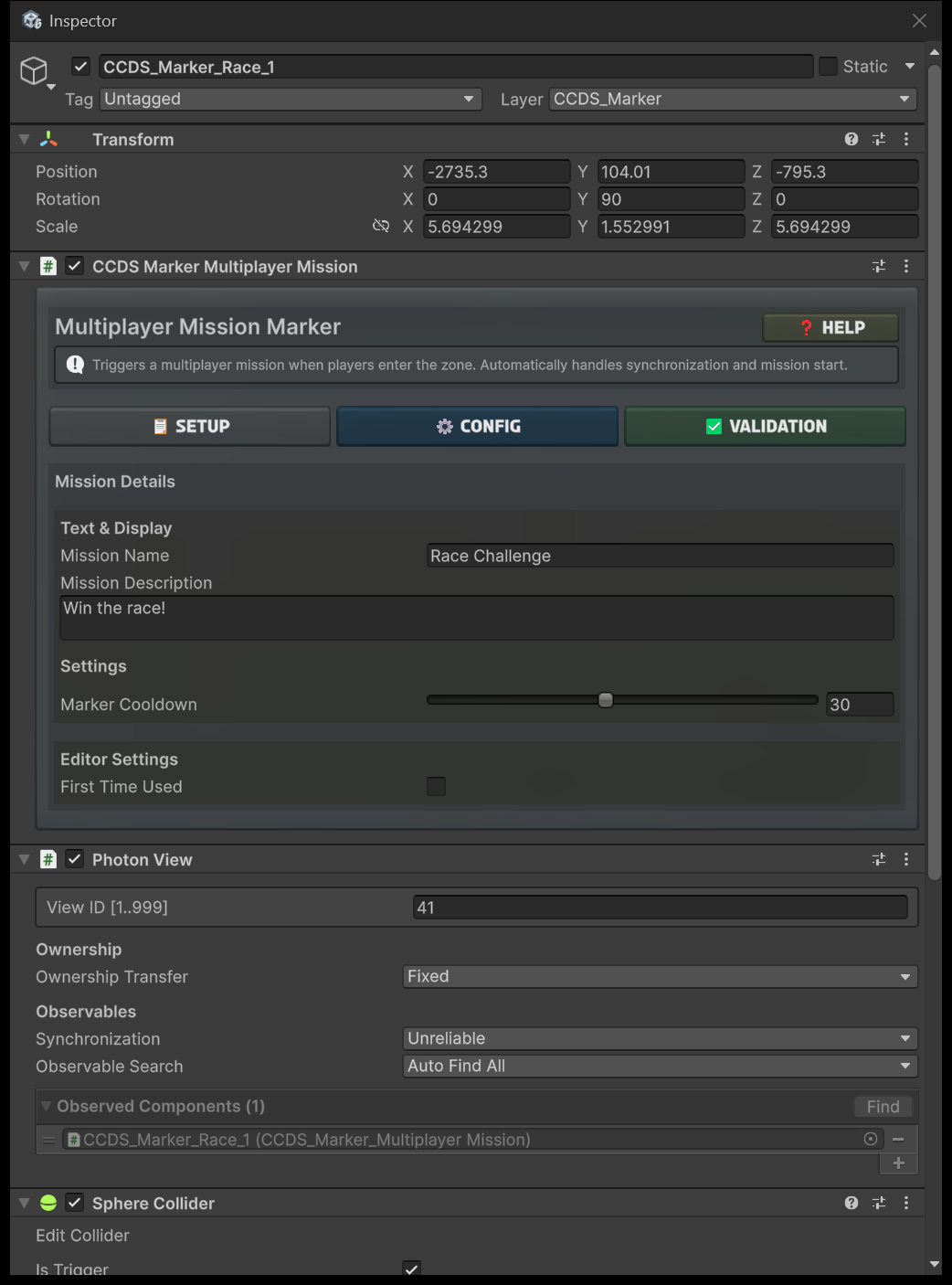

Figure 01Open full size ↗

The marker inspector has three tabs — Setup (the mission reference), Config (name, description, cooldown) and Validation.

Three things on the marker have to be right and are easy to miss:

• Its Layer is CCDS_Marker.
• Its collider has Is Trigger enabled.
• Its PhotonView observes the marker component, with Ownership Transfer Fixed and Synchronization Unreliable.

Dragging in a marker prefab gives you all three. Building one from an empty GameObject does not.

06How the player starts it

Drive into the marker, then press Y.

The key is CCDS_Settings.missionConfirmKey, read live by CCDS_MissionMarkerInputHandler. Change it in CCDS_Settings.asset and the marker's own prompt text updates to match — it is not hard-coded anywhere in the UI.

If you rebind it, avoid F and R: both are already taken by RCCP (NOS and record). See the control table in Install and First Drive.

When the mission ends, the marker enters cooldown for markerCooldown seconds and shows a Cooldown Ns countdown before becoming available again.

07Marker states

CCDS_Marker_MultiplayerMission synchronises its state across the network. In multiplayer the master client is authoritative.

08Cops and pursuit

Pursuit missions need police vehicles. CCDS_CopsManager handles spawning, and you can add one directly:

// Uses CCDS_Settings.copVehicle
CCDS.CreateCop(new Vector3(50f, 0f, 20f));

// Or an explicit prefab
CCDS.CreateCop(myCopPrefab, position, rotation);

The prefab must carry CCDS_AI_Cop. Build one with Tools → BoneCracker Games → CCDS → Vehicle Setup → Add Cop AI Components To Selected.

09Mission AI runs locally — keep it that way

Each participant activates the mission's AI locally, when the mission GameObject enables. There is no RPC broadcast telling everyone to spawn racers.

The consequence: players who are not in the mission never enable it, so they never see its AI racers or pursuit vehicles. That is deliberate. If you add code that spawns mission AI over the network, every player in the room gets them and the city fills with cars that should not be there.

The rationale is written up in Assets/CCDS/Scripts/Missions/MISSION_SYSTEM_REFACTORING.md.

10Verify

1. Open a gameplay scene, press Play.
2. Drive into the marker — the prompt appears.
3. Press Y.
4. The mission starts, objectives appear, the arrow indicator points at the next one.
5. Complete it and confirm the marker goes into cooldown.

If the prompt appears but Y does nothing, the marker's mission field is empty.

11Common problems

12Next

• Set Up a New City Scene — the managers missions depend on.
• Multiplayer — spawn assignment and participant tracking.
• Events Catalog — OnMissionStarted, OnMissionCompleted and friends.
